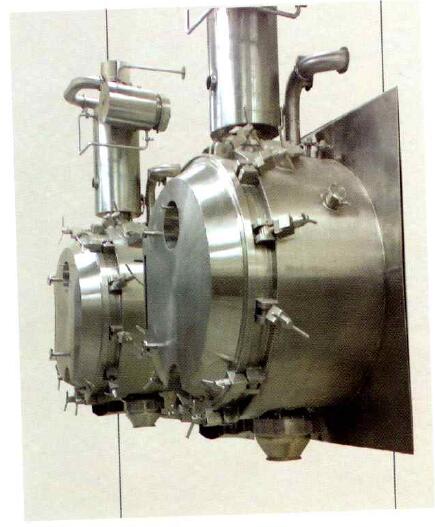

HD series dryer: it is a kind of multifunctional and fully airtight vacuum drying equipment which integrates drying and mixing. It is mainly used for drying and mixing of antibiotics, antibiotics, API, fine chemicals, etc. The perfect and reliable design in line with the latest GMP standards and specifications forms an integrated filtering and drying system with centrifuges.

HD series vacuum drying equipment: horizontal through wall installation mode, to ensure the complete isolation of process and technical area, and fundamentally avoid the pollution of products. The materials are dried and mixed through the compound movement of up, down, left and right. Plough mixing forces the material to roll in the cylinder.

• The sealing performance is good and the cleanliness is high. All sealing elements are made of materials meeting GMP requirements;

• There is no foreign matter pollution. The special mechanical seal between the mixing shaft and the cavity ensures that the product is free from the contamination of lubricants and other foreign matters and meets the requirements of aseptic production;

• High thermal efficiency: all inner cavities (shell and mixing) of equipment and materials are evenly mixed with large heat exchange area;

• Good drying effect: stirring can replace the internal and external layers of materials, and effectively avoid the wall hanging and caking of materials, and the final product quality will be high after drying;

• Processing capacity: the material filling ratio is greater than 70%;

• Equipped with CIP cleaning and sip in-situ high-temperature sterilization, it can realize the processing conversion of different products in a short time;

• The discharging, sampling and discharging are smooth with little residue;

• The whole machine is designed and manufactured according to ASME code and safety standard of pressure vessel.

• Main technical parameters of HD system (can be made according to user requirements)
