Glass lined storage tank

Home > Products > Storage Tank > Glass-lined tank

Glass lined tank is used to store acid, alcohol, gas and other refined chemical substances. It is an essential and important infrastructure for petroleum, chemical, grain and oil, food, fire protection, transportation, metallurgy, national defense and other industries. Our economic life is always inseparable from large and small storage tanks. Types of Huateng glass lined tank are 50L\100L\200L\500L\1,000L\2,000L\5,000L\6,300L\8,000L\10,000\16,000L\20,000L \25,000L\30,000L\50,000\63,000L\80,000L and so on (see the products tab). Clint can customize non-standard closed glass lined tank according to the user's needs. The glass lined tank of Huateng enamel has reliable quality, considerate service and user's confidence.

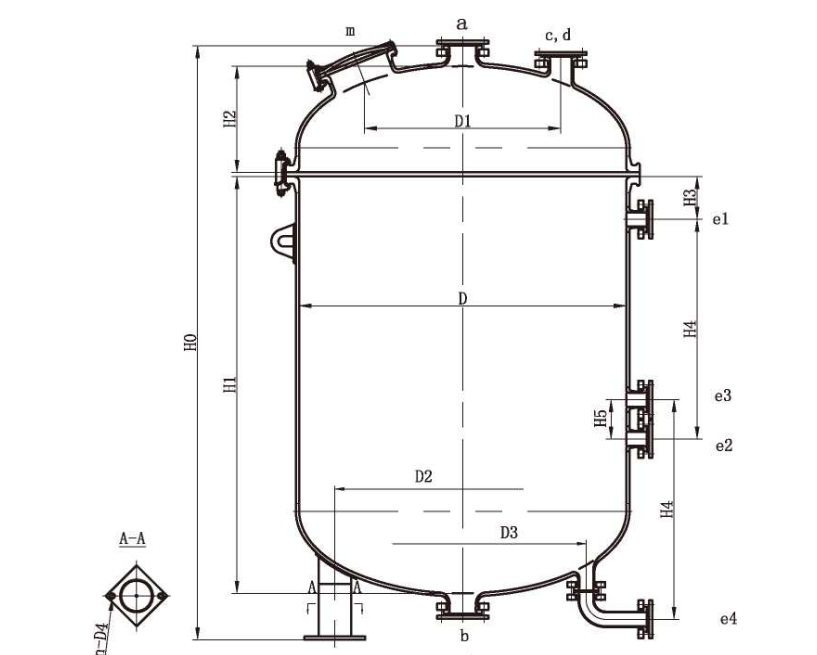

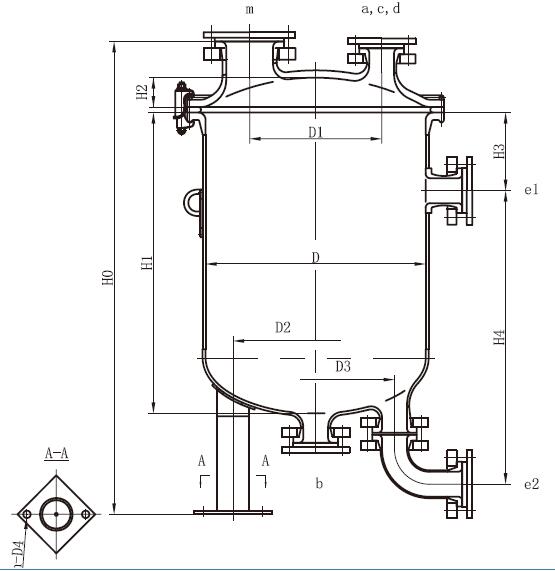

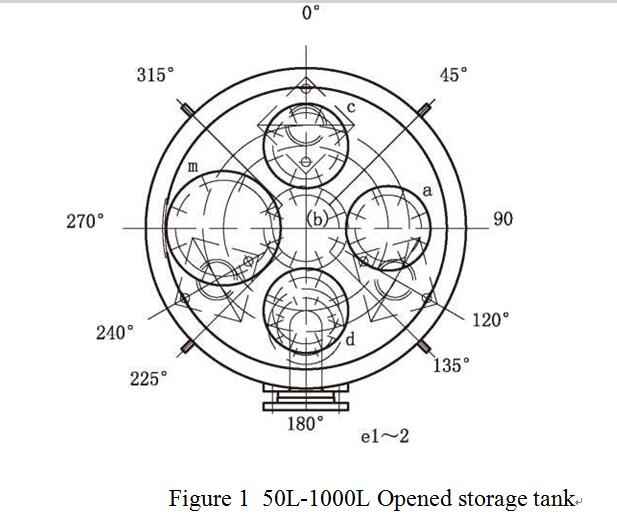

HG/T 2373-2011

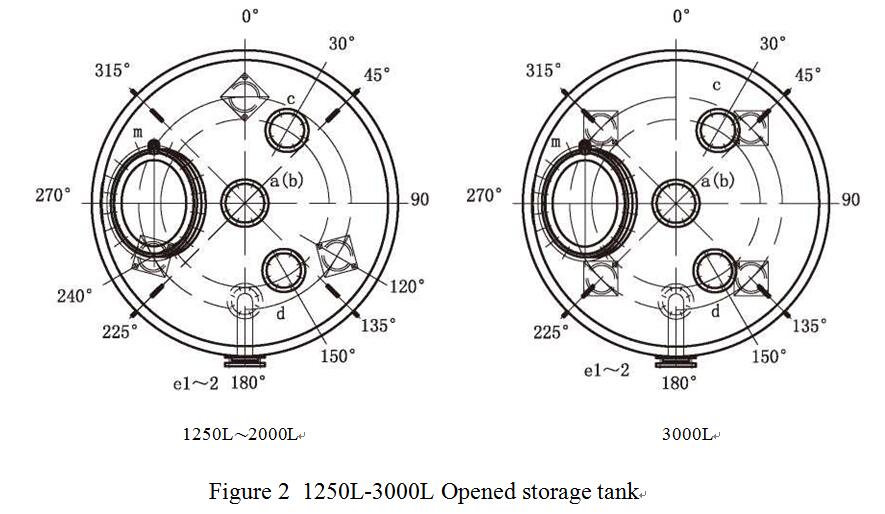

FF 1250-3000tank 20200930102835.jpg

HG/T 2373-2011

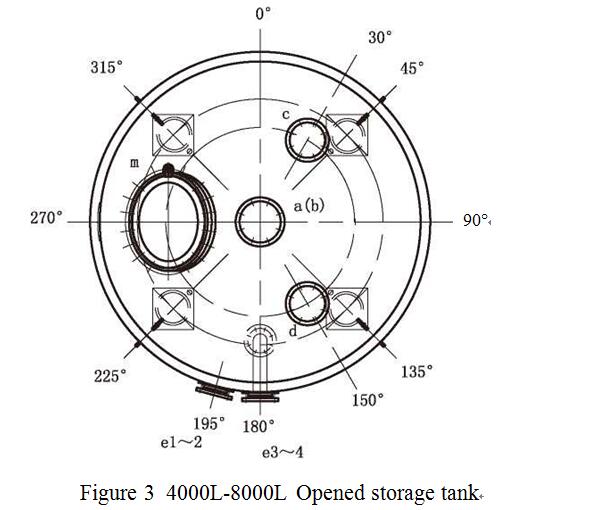

FF 4000 tank截图20200930103121.jpg

Volume Nominal VN/L	Actual Volume V/L	Diameter D/mm	Nominal Diameter of Nozzle - DN							Liquidometer Nominal length * Quantity/mm
Volume Nominal VN/L	Actual Volume V/L	Diameter D/mm	Inlet a/mm	Ontlet b/mm	Spare hole c/mm	Spare hole d/mm	Liquidometer e1 -2/mm	Liquidometer e3-4/mm	Man hole m/mm	Liquidometer Nominal length * Quantity/mm
50	58.6	400	65	65	65	65	/	/	100	/
100	110	500	65	65	65	65	50	/	100	600X1
200	218	600	65	65	65	65	65	/	125	800X1
300	324	700	80	80	65	65	65	/	125	900X1
400	469	800	80	80	80	65	65	/	125	1000X1
500	590	800	80	80	80	65	65	/	150	1200X1
800	877	1000	80	80	80	80	65	/	150	1200X1
1000	1112	1000	80	80	80	80	65	/	150	1500X1
1250	1357	1200	80	80	80	80	65	/	400X300	1300X1
1500	1640	1200	100	100	80	80	65	/	400X300	1500X1
2000	2179	1300	100	100	80	80	65	/	400X300	1700X1
3000	3153	1450	125	125	100	100	65	/	400 X 300	2000X1
4000	4336	1600	125	125	100	100	65	65	400X300	1200X2
5000	5542	1600	125	125	100	100	65	65	400X300	1500X2
6300	7100	1750	125	125	100	100	65	65	400X300	1500X2
8000	8800	1750	125	125	100	100	65	65	400X300	1900X2
Volume Nominal VN/L	Size
Volume Nominal VN/L	H0/mm	H1 /mm	H2/mm	H3/mm	H4/mm	H5/mm	D1/mm	D2/mm	D3/mm	n〜D4/mm
50	957	500	54	/	/	/	240	300	/	6-Φ20
100	1068	600	67	185	600X1	/	300	380	360	6-Φ20
200	1289	820	80	213	800X1	/	360	450	430	6-Φ20
300	1371	900	94	180	900X1	/	420	530	530	6-Φ20
400	1472	100	107	170	1000X1	/	4B0	600	630	6-Φ020
500	1712	1240	107	210	1200X1	/	4B0	600	730	6-Φ20
800	1720	1200	134	200	1200X1	/	600	750	608	6-Φ20
1000	2010	1500	134	190	1500X1	/	600	750	608	6-Φ20
1250	2058	1300	410	180	1300X1	/	720	900	808	6-Φ20
1500	2319	1550	410	230	1500X1	/	720	900	808	6-Φ020
2000	2589	1750	435	180	1700X1	/	780	1000	908	6-Φ24
3000	2870	2030	473	200	2000X1	/	870	1100	1058	8-Φ24
4000	3168	2290	520	210	1200X2	193	960	1250	1208	8-Φ24
5000	3758	2890	520	210	1500X2	193	960	1250	1208	8-Φ24
6300	3751	2800	557	200	1500X2	277	1050	1320	1200	8-Φ24
8000	4451	3500	557	200	1900X2	368	1050	1320	1200	8-Φ24

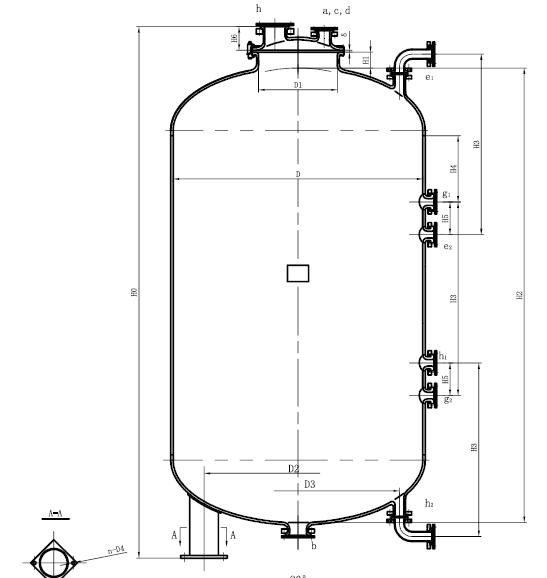

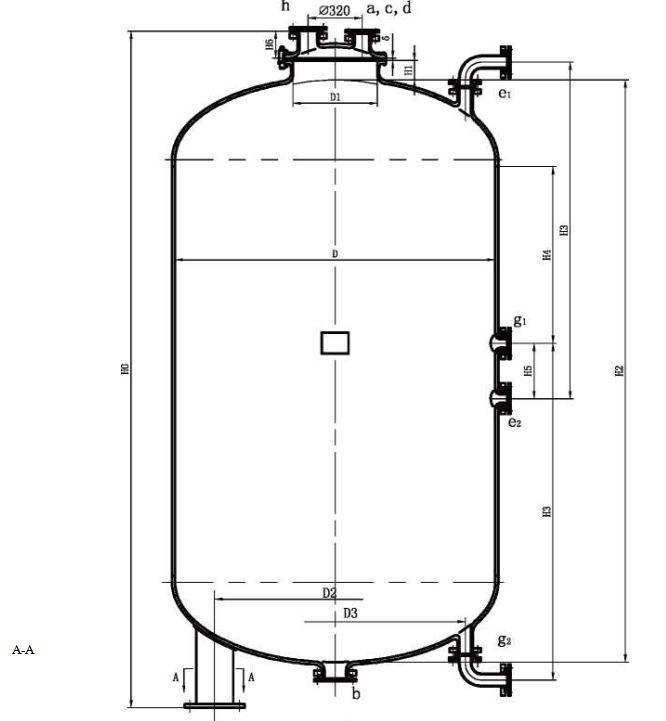

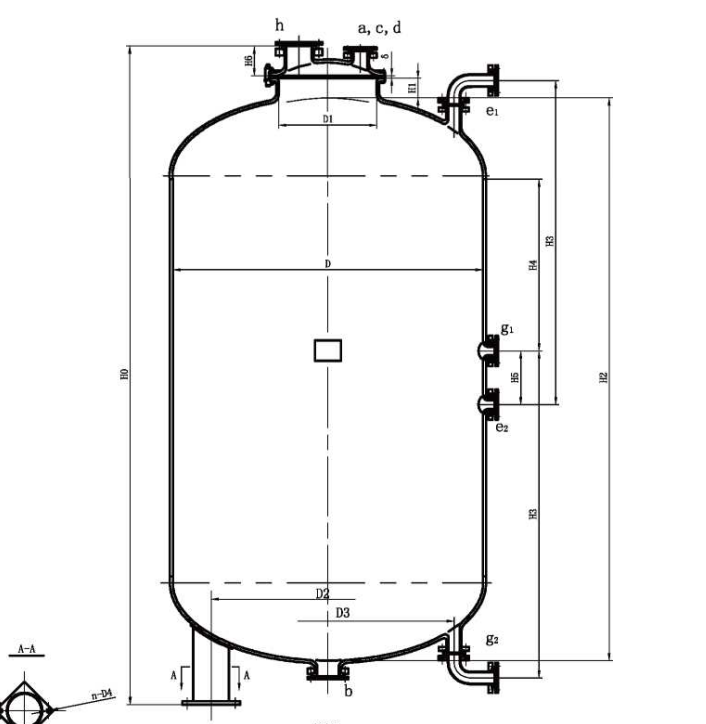

HG/T2374-2011

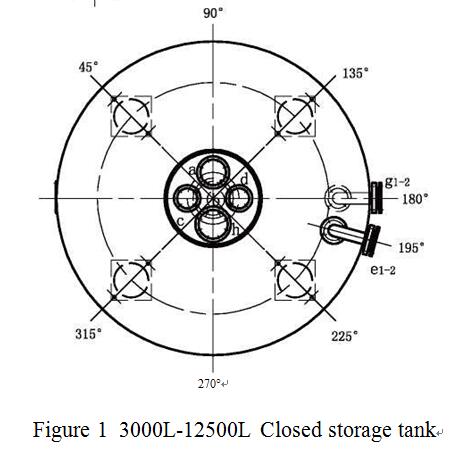

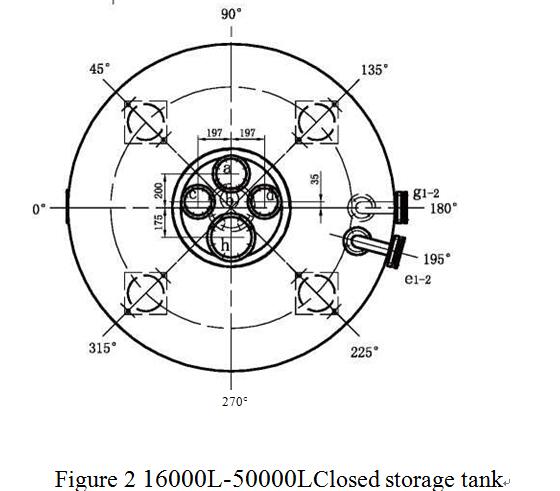

FF 3000 tank截图20200930105940.jpg FF 16000 tank 截图20200930110232.jpg QQ截图储罐20200915132938.jpg

FF 63000 TANK20200930110428.jpg

Volume Nominal VN/L	Actual Volume V/L	Diamete Nominal D	Nominal Diameter of Nozzle -DN						Liquidometer Nominal length * Quantity /mm
Volume Nominal VN/L	Actual Volume V/L	Diamete Nominal D	Inet a	Outlet b	Technology hole c	Spare hole d	Technology hole h	Liquidometer e1-2 h1-2 gl-2	Liquidometer Nominal length * Quantity /mm
3000	3355	1450	80	125	50	50	100	65	1400 X2
4000	4777	1600							1600X2
5000	5561	1600							1800X2
6300	6877	1750							1900X2
8000	8944	1900							2000X2
10000	11668	2200		150					2000X2
12500	13644	2200							2250X2
16000	17318	2400	100		80	80	150		2400 X2
20000	21738	2600							2500X2
25000	27640	2800							2700X2
30000	32547	3000							2800X2
40000	43189	3200		200					3200X2
50000	53892	3400							3550X2
63000	69000	3600							2700X3
80000	88000	3800							3000X3

Volume Nomina VN/L	Size
Volume Nomina VN/L	H0	H1	H2	H3	H4	H5	H6	D1	D2	D3	n-D4
3000	2775	88	2260	1400	615	220	160	500	1090	1086	8-Φ024
4000	3153	105	2630	1600	741	268			1200	1240
5000	3542	105	3020	1800	931	278			1200	1240
6300	3737	110	3140	1900	894	402			1320	1394
8000	4020	115	3460	2000	1051	328			1430	1544
10000	3970	115	3430	2000	995	235			1650	1648
12500	4540	115	3950	2250	1265	215			1650	1648
16000	4792	120	4220	2400	1336	24B	180	600	1800	1852
20000	5100	120	4520	2500	1460	200			1950	2056
25000	5545	130	4950	2700	1610	230			2100	2256
30000	5680	130	5100	2800	1637	228			2250	2256
40000	6470	135	5900	3200	1940	320			2400	2560
50000	7087	135	6500	3550	2182	337			2550	2720
63000	8020	135	7440	2700	1390	249			2420	2880
80000	9060	145	8390	3000	1695	217			2520	3040	8-Φ30

HG/T2375-2011

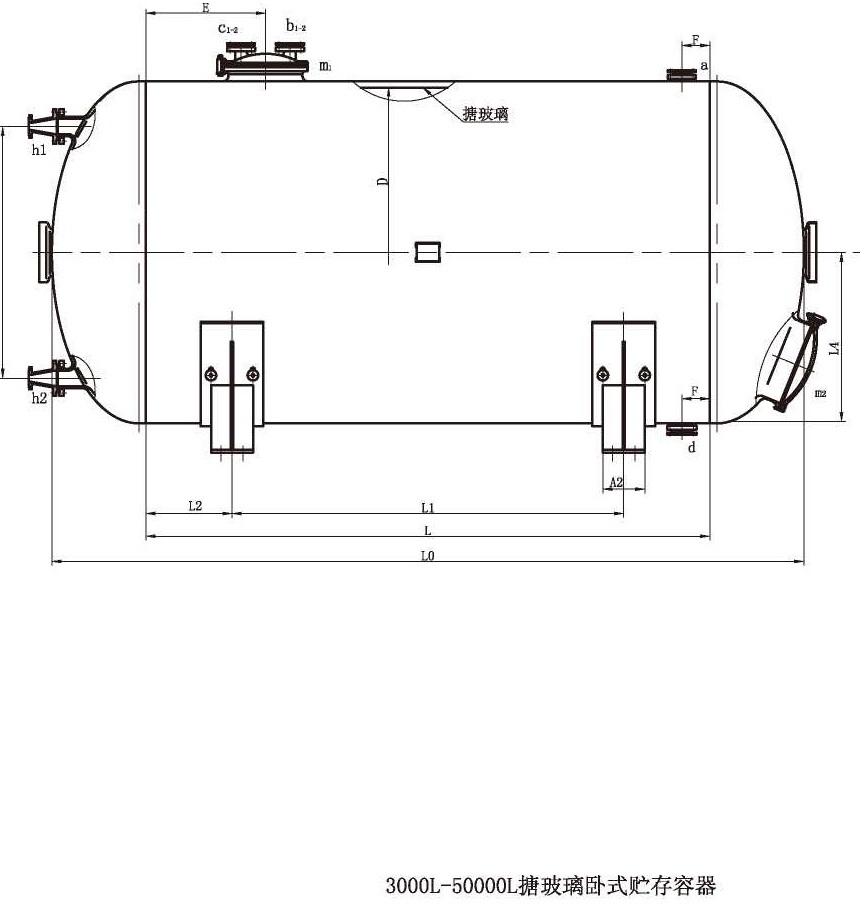

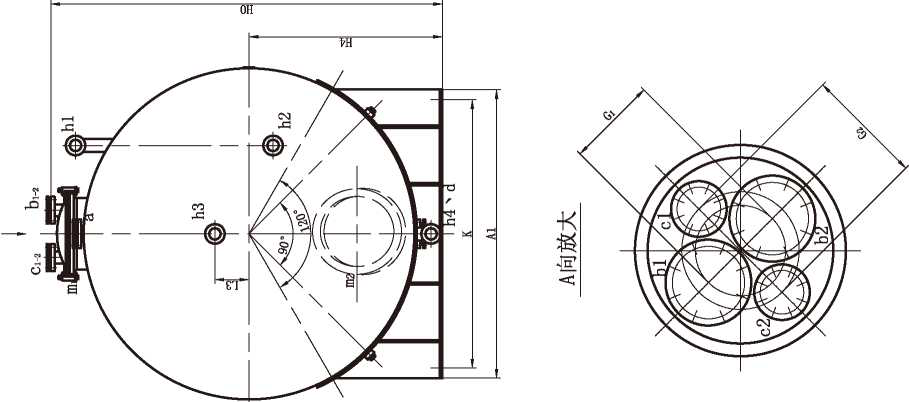

3000L-50000L Glass-lined Closed Horizontal Storage Tank

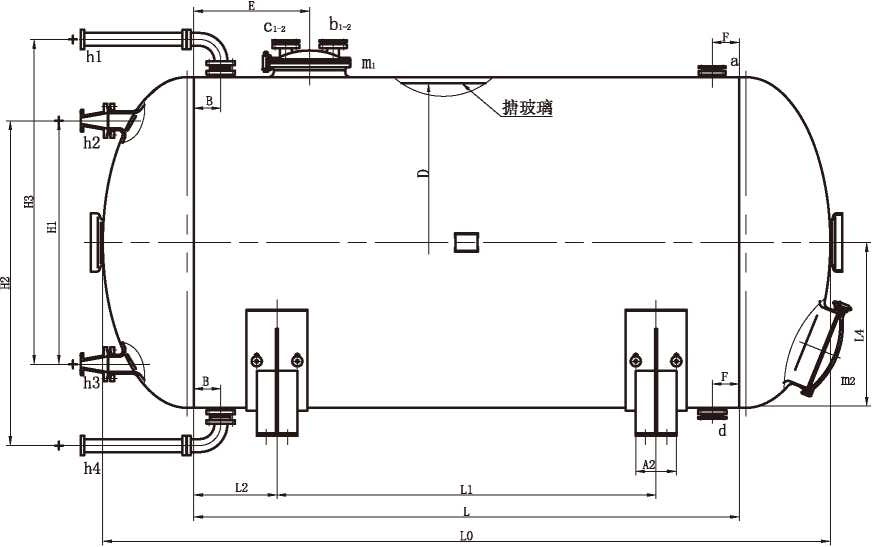

63000L-80000L Glass-lined Closed Horizontal Storage Tank

Lo	L1	L-2	L3	l₄	Ho	Hi	h₂	h₃	h₄	A,	气	K	B	E	F	G1	g₂
3000	2260	740	357	-	-	2112	-	1000	-	1089	1300	250	1080	-	600	115	290	320
4000	2940	1420	357			2118		1000		1095	1300	250	1080			120
5000	3020	1400	370			2270		1200		1170	1430	250	1180			120
6300	3140	1390	397			2422		1400		1250	1560	250	1300			130
8000	3460	1590	420			2575		1500		1325	1690	250	1420			130
10000	3860	1860	450			2680		1600		1376	1780	250	1490			150
12500	4650	2610	470			2680		1600		1376	1780	250	1490
16000	4900	2700	500			2910		1800		1475	1950	300	1680				300	390
20000	5200	2800	550			3110		2000		1580	2130	300	1890
25000	4950	2250	600			3523		2100		1780	2470	400	2240		700
30000	5100	2240	630			3275		2200		1882	2650	400	2430		700
40000	6000	2800	750		1120	3932		2500		1985	2820	400	2590		750	200
50000	6500	3100	800		1190	4135		2600		2085	3000	400	2740
63000	7150	3550	850	565	1260	4335	1128	2600	2600	2188	3200	400	2920	150
80000	8100	4210	945	565	1330	4548	1128	2700	2700	2290	3390	400	3110	150

Volume Nominal VN/L	Actual Volume V/L	Diamete Nominal D	Cylinder length L
Volume Nominal VN/L	Actual Volume V/L	Diamete Nominal D	Cylinder length L	Spare hole a	Spare hole b1 b2
3000	3330	1450	1454
4000	4453	1450	2135
5000	5533	1600	2140	80
6300	6847	1750	2185		100
8000	8909	1900	2430
10000	11074	2000	2760
12500	13555	2000	3550
16000	17225	2200	3700	150
20000	21705	2400	3900	150
25000	27595	2800	3450
30000	32505	3000	3500		150
40000	43947	3200	4300		150
50000	5384B	3400	4700	200
63000	66643	3600	5250	200
80000	84645	3800	6100

Nominal Diameter of Nozzle DN					Liquidometer Nominal length * Quantity /mm
Spare hole c1 c2	Outlet d	Liquidometer h1-4	Manhole m1	Manhole m2
65	80	65	Φ500	-	1000X1
					1000X1
					1200X1
					1400X1
					1500X1
	150				1600X1
					1600X1
			Φ600		1800X1
					2000X1
					2100X1
					2200X1
	200			Φ600	2500X1
					2600X1
					2600 X2
					2700X2
